Automotive Spray Booths High Performance Systems USA

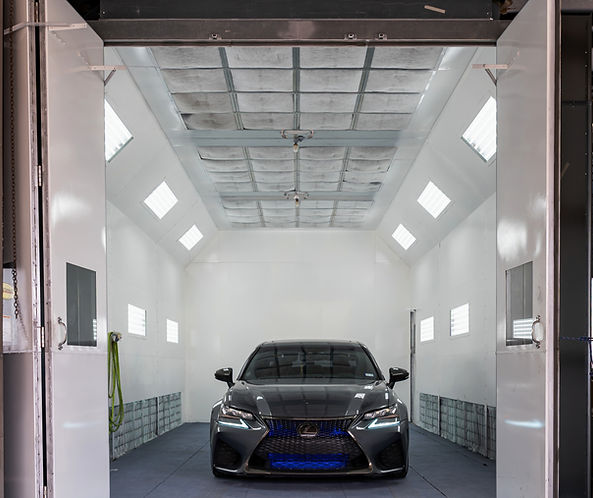

Front Facing - Car - Edited_edited_edited.jpg

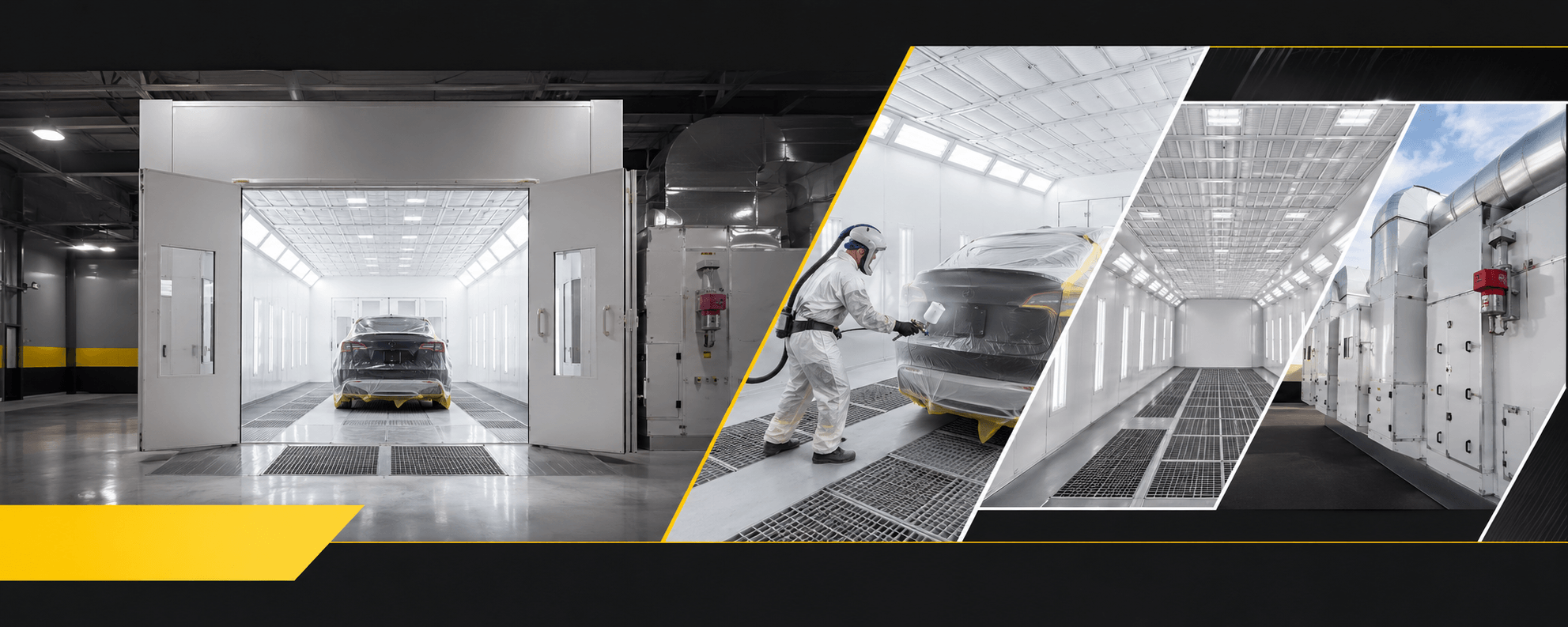

Indoor Automotive Spray Booths

Engineered for automotive refinishing, our indoor spray booths deliver controlled airflow, efficient filtration, and consistent, high-quality paint results.

GET A QUOTE

CALL US

Performance-Focused. Shop-Ready. Finish Perfected.

Description

California Pulse Indoor Automotive Spray Booths are expertly engineered for high-quality, efficient finishing in a controlled environment. Built to fit your space and production needs, they offer advanced airflow, optional heating and filtration systems, and seamless integration into your facility—all while meeting local codes and industry standards.

Common Industries

Automotive

GET A FREE QUOTE

Proudly made in the USA

Fully ETL Listed Systems

Backed by Warranty

Engineered Designs

Decades of Experience

ETL Listed

All booths are fully ETL-listed at no extra charge to ease the permitting process.

Filtration

Intake filtration consists of polyester filters tackified to ensure fine dust particles are captured and only clean air enters the booth. Exhaust filtration consists of fiberglass media for high-efficiency paint removal as air exits the booth.

Fans

Air is exhausted out by a belt-driven tubeaxial fan, designed with an aluminum bladed propeller for low noise levels.

Lighting

Booths come standard with LED tube lights, featuring an output of up to 10,000 lumens each. Fixtures are all inside-access and Class 1 Division 2 rated.

Construction

Booths are constructed from 18-ga galvanized steel. Panels come pre-punched for easy nut-and-bolt assembly. Full installation instructions and 3D modeling in SolidWorks.

Sizing

Pressurized Booth

Intake fans or heated air makeup units supply filtered intake air into the booth, creating positive pressure. This helps keep contaminants out and ensures clean airflow for high-quality finishes.

Powder Coated Finish

Our booths can be powder coated for a durable, corrosion-resistant finish that’s easy to clean and built to last in demanding environments.

Seismic & Structural Engineering

Optional seismic and structural engineering is available to ensure your booth meets local building codes and site-specific requirements.

Door Options

Choose from tri-fold, bi-fold, or drive-through doors to fit your space, workflow, and access needs.

Filtration Options

Add multi-stage intake and exhaust filtration for cleaner airflow and better finish quality. Drop-down filters are also available for easier maintenance.

Insulation

Insulation enhances thermal efficiency and climate control in booths—helping maintain consistent temperatures and protect against temperature swings.

Dual Skin Panels

Dual skin panels can be added for enhanced insulation, noise reduction, and a cleaner interior appearance—ideal for maintaining consistent temperatures and a professional workspace.

Standard sizes are available, which can reduce lead times and cost. Custom sizes are also available to fit the exact requirements of your shop.

Cross Flow (Front Air Flow)

Air enters through filters at the front of the booth and flows horizontally over the product, exiting at the rear. A cost-effective option that requires no concrete pit.

Reverse Flow

Air enters from the rear of the booth and is exhausted near the entry doors. This layout helps keep the front of the booth clean and often incorporates heated air intake.

Modified (Semi) Down Draft

Air enters from the ceiling near the front and flows diagonally toward the rear exhaust. Offers better airflow than crossflow without the need for a pit.

Side Downdraft

Air flows from the ceiling down and exits through low sidewall exhaust plenums. Delivers a downdraft effect without requiring floor grating.

Full Down Draft

Air enters from the ceiling and flows straight down over the product, exiting through the floor. This provides the cleanest finish with minimal overspray contamination.

California Pulse products are designed and manufactured to comply with applicable industry codes and standards

Refer to NFPA 33 and Chapter 24 of the International Fire Code (IFC) for spray applications involving flammable and combustible materials.
Refer to NFPA 86 and Chapter 30 of the IFC for curing and drying operations.
Most California Pulse systems carry ETL listings, demonstrating compliance with North American safety standards such as UL, NFPA, and OSHA.
ETL listings certify that ETL has rigorously tested California Pulse products to meet strict safety and performance criteria.
Please note local regulations may vary; California Pulse recommends consulting your local authority having jurisdiction before purchasing paint booths or finishing equipment.
