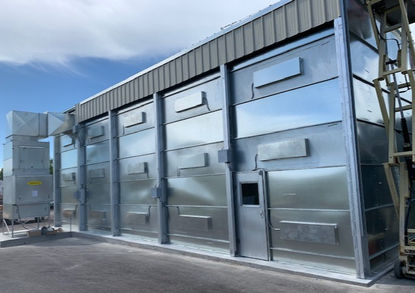

Outdoor Spray Booths
Weather-resistant outdoor spray booths built for high-performance finishing, advanced airflow, and reliable operation in demanding environments.
Stand Alone Systems
Durable, High-Performance Stand Alone Spray Booths
California Pulse offers premium outdoor spray booths designed for durability and performance in demanding industries. With advanced filtration and airflow, our systems deliver a clean, repeatable finish, built around your workflow and site conditions.
1 / 5
- Proudly Made in the USA
- ETL Listed Systems Available
- Backed by Warranty
- Engineered Designs
- Decades of Experience
At a Glance
Outdoor spray booth specifications
Standard configuration and the options offered. Final dimensions are engineered to the site.
| Airflow configurations | Cross flow, reverse flow, modified (semi) down draft, side down draft, or full down draft |
|---|---|
| Sizing | Engineered to the installation site |
| Filtration | Two stage: tackified polyester intake filters, fiberglass exhaust media |
| Heating and air makeup | Intake fans or heated air makeup units supply filtered air at positive pressure to keep contaminants out |
| Insulation | Fiberglass, for thermal efficiency and protection against weather extremes |
| Panels | 18-ga galvanized steel, pre-punched, with multi-ribbed outdoor-rated panels on the exterior sides and top; various colors available |
| Exhaust fan | Belt-driven tubeaxial fan with an aluminum bladed propeller, for low noise |
|---|---|
| Lighting | LED tube lights up to 10,000 lumens each, inside-access, Class 1 Division 2 rated |

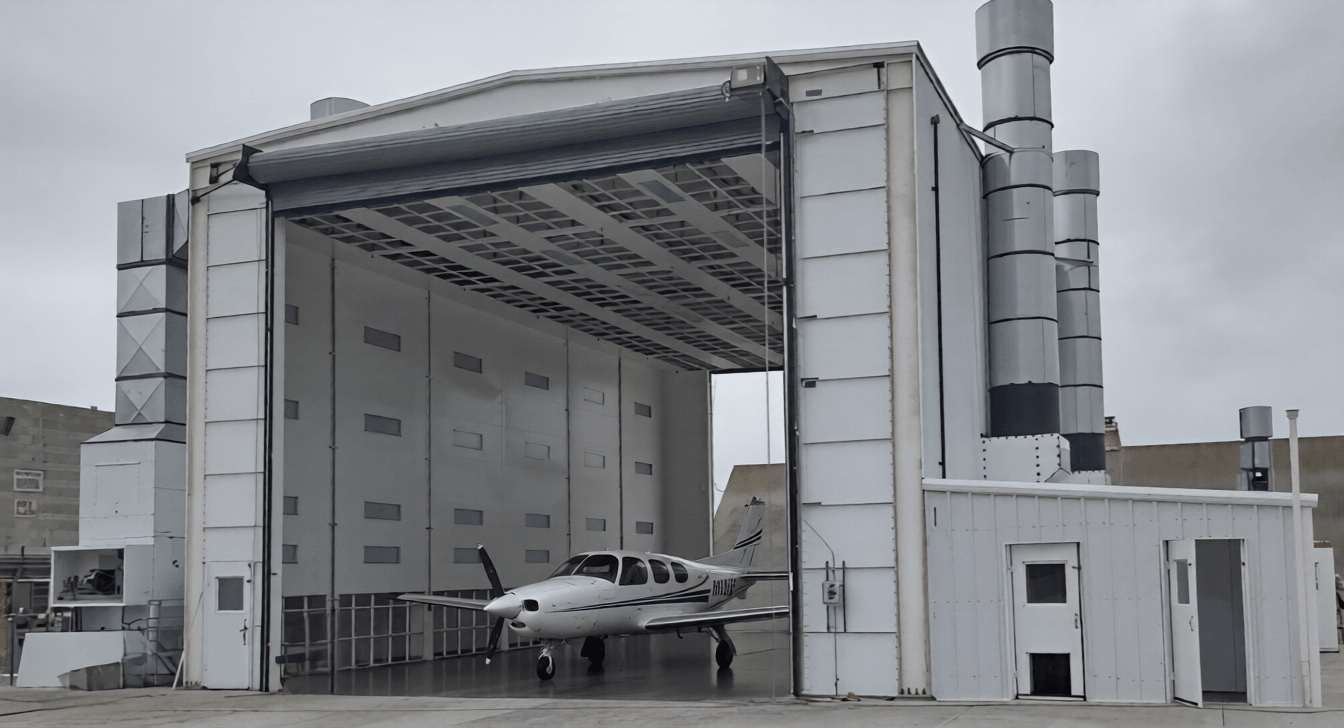

| Doors | Drive-through, tri-fold, bi-fold or roll-up |
| Certification | Fully ETL listed at no extra charge, to ease permitting |
| Permit documentation | Drawings, airflow calculations and basic electrical and power documentation included; stamped structural and seismic engineering available as a paid option |
Build It Your Way
Available Options
- Strict Temperature & Humidity Control
- Hold conditions steady year-round for consistent curing, clean finishes, and climate-sensitive coatings.
- Seismic & Structural Engineering
- Optional seismic and structural engineering is available to address local building codes and site-specific requirements.
- Door Configurations
- Choose from drive-through, tri-fold, bi-fold, or roll-up doors to fit your space, workflow, and access needs.
- Advanced Filtration
- Add multi-stage intake and exhaust filtration for cleaner airflow and better finish quality. Drop-down filters are also available for easier maintenance.
Codes & Standards
Designed to Comply
California Pulse products are designed and manufactured to comply with applicable industry codes and standards.
- Refer to NFPA 33 and Chapter 24 of the International Fire Code for spray applications involving flammable and combustible materials.
- Refer to NFPA 86 and Chapter 30 of the IFC for curing and drying operations.
- Most systems carry ETL listings, demonstrating compliance with North American safety standards such as UL, NFPA, and OSHA.
- ETL listings certify that ETL has rigorously tested California Pulse products to meet strict safety and performance criteria.
Please note local regulations may vary; California Pulse recommends consulting your local authority having jurisdiction before purchasing paint booths or finishing equipment.
FAQ
Frequently Asked Questions
Can an outdoor spray booth perform as well as an indoor spray booth?
Absolutely. A properly engineered outdoor spray booth can deliver the same finish quality, airflow performance, and contamination control as an indoor booth. California Pulse outdoor spray booths are designed with customizable airflow configurations, advanced filtration systems, and optional heating and environmental controls to maintain consistent finishing conditions year-round.
Will an outdoor spray booth help me avoid costly building expansions?
In many cases, yes. One of the biggest advantages of an outdoor spray booth is the ability to expand finishing operations without investing in expensive building additions or sacrificing valuable indoor production space. California Pulse designs custom outdoor booth solutions that help facilities increase throughput while maximizing existing square footage and reducing overall project costs.
Are outdoor spray booths difficult to permit and install?
Permitting can be one of the biggest concerns when purchasing finishing equipment. California Pulse simplifies the process by supplying engineered drawings, airflow and ventilation calculations, basic electrical and power documentation, and available full-system ETL listings to help streamline approvals. Stamped structural and seismic engineering is available as a paid option. Our team works directly with customers throughout the project to reduce delays.
Can an outdoor spray booth withstand harsh weather conditions?
Yes. California Pulse outdoor spray booths are engineered to handle demanding environmental conditions, including high winds, snow loads, seismic requirements, extreme temperatures, and heavy rain. Each system is designed around your location and operational requirements, providing a durable, long-term finishing solution.
Why do manufacturers choose California Pulse for outdoor spray booths?
Manufacturers choose California Pulse because a booth on its own is not enough. They need a reliable finishing system partner. As a U.S.-based manufacturer, California Pulse provides custom-engineered outdoor spray booths, full-system ETL-listed options, compliance-focused designs, and direct technical support throughout the entire project lifecycle.
Free Resource
Get the Free Buyer’s Guide
Everything you need to size, spec, and buy the right system: finish quality, worker safety, code compliance, operating cost, and a step-by-step sizing worksheet.
Prefer to read it now? How to Choose an Industrial Spray Booth covers the same ground in the Learning Center, no form required.
