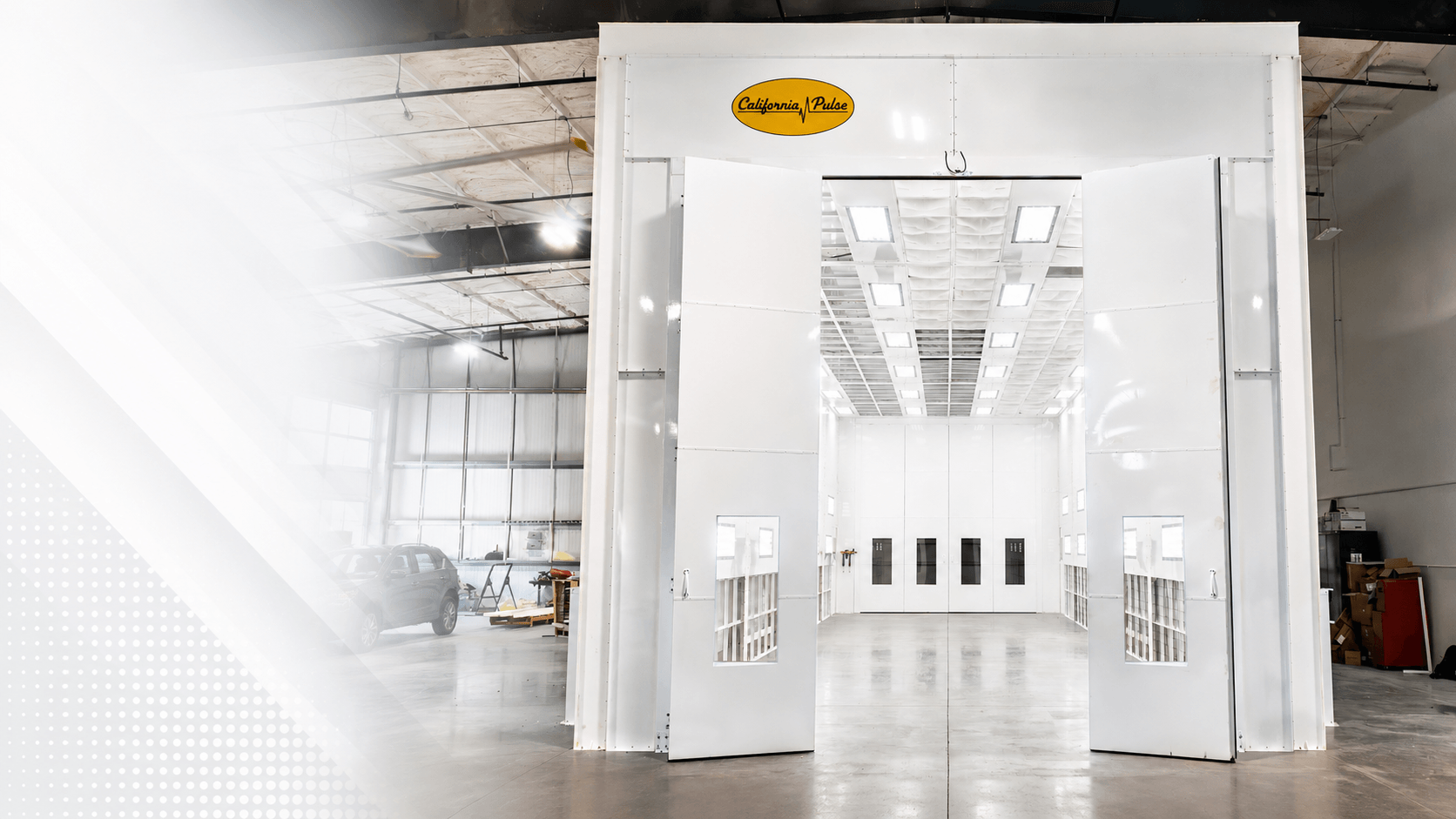

Truck and Large Equipment Booths

Truck and Large Equipment Booths

Custom-built spray booths designed for trucks, heavy equipment, and oversized vehicles with advanced airflow, durable construction, and consistent finishing performance.

Request a QuoteCall 760-957-8819

Booths

Industry Proven Booths for Large Vehicles and Products

California Pulse Custom Spray Booths for Trucks and Large Equipment maximize finish quality, boost productivity, and reduce downtime. Built to your specifications, they feature advanced airflow, durable construction, and options like heated air and multi-stage filtration for a safer, cleaner, and more efficient painting process. These booths deliver consistent, professional results on even the largest projects.

1 / 5
  • Proudly Made in the USA
  • ETL Listed Systems Available
  • Backed by Warranty
  • Engineered Designs
  • Decades of Experience

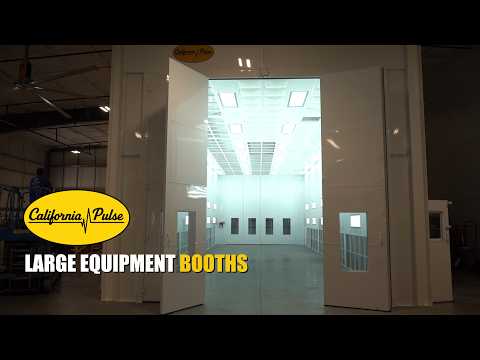

See It in Action

Watch the Video

Features

ETL Listed

All spray booths are fully ETL-listed at no extra charge to ease the permitting process.

Filtration

Intake filtration consists of polyester filters tackified to ensure fine dust particles are captured and only clean air enters the booth. Exhaust filtration consists of fiberglass media for high-efficiency paint removal as air exits the booth.

Fans

Air is exhausted out by a belt-driven tubeaxial fan, designed with an aluminum bladed propeller for low noise levels.

Lighting

Booths come standard with LED tube lights, featuring an output of up to 10,000 lumens each. Fixtures are all inside-access and Class 1 Division 2 rated.

Construction

Booths are constructed from 18-ga galvanized steel. Panels come pre-punched for easy nut-and-bolt assembly. Full installation instructions and 3D modeling in SolidWorks.

Airflow Options

Cross Flow (Front Air Flow)

Air enters through filters at the front of the booth and flows horizontally over the product, exiting at the rear. A cost-effective option that requires no concrete pit.

Reverse Flow

Air enters from the rear of the booth and is exhausted near the entry doors. This layout helps keep the front of the booth clean and often incorporates heated air intake.

Modified (Semi) Down Draft

Air enters from the ceiling near the front and flows diagonally toward the rear exhaust. Offers better airflow than crossflow without the need for a pit.

Side Downdraft

Air flows from the ceiling down and exits through low sidewall exhaust plenums. Delivers a downdraft effect without requiring floor grating.

Full Down Draft

Air enters from the ceiling and flows straight down over the product, exiting through the floor. This provides the cleanest finish with minimal overspray contamination.

Equipment Options

Pressurized Booth

Intake fans or heated air makeup units supply filtered intake air into the booth, creating positive pressure. This helps keep contaminants out and ensures clean airflow for high-quality finishes.

Powder Coated Finish

Our booths can be powder coated for a durable, corrosion-resistant finish that’s easy to clean and built to last in demanding environments.

Seismic & Structural Engineering

Optional seismic and structural engineering is available to address local building codes and site-specific requirements.

Door Options

Choose from tri-fold, bi-fold, or roll-up doors to fit your space, workflow, and access needs.

Filtration Options

Add multi-stage intake and exhaust filtration for cleaner airflow and better finish quality. Drop-down filters are also available for easier maintenance.

Strict Temperature and Humidity Control

Maintain perfect conditions with Strict Temperature and Humidity Control—ideal for consistent curing, flawless finishes, and climate-sensitive coatings.

Codes & Standards

Code Compliance

Intertek ETL Listed
NFPA
OSHA

California Pulse products are designed and manufactured to comply with applicable industry codes and standards

  • Refer to NFPA 33 and Chapter 24 of the International Fire Code (IFC) for spray applications involving flammable and combustible materials.
  • Refer to NFPA 86 and Chapter 30 of the IFC for curing and drying operations.
  • Most California Pulse systems carry ETL listings, demonstrating compliance with North American safety standards such as UL, NFPA, and OSHA.
  • ETL listings certify that ETL has rigorously tested California Pulse products to meet strict safety and performance criteria.
  • Please note local regulations may vary; California Pulse recommends consulting your local authority having jurisdiction before purchasing paint booths or finishing equipment.

FAQ

Frequently Asked Questions

Can a truck paint booth handle oversized vehicles and equipment?

Yes. Truck and large equipment spray booths are specifically engineered to accommodate oversized vehicles, heavy machinery, agricultural equipment, buses, trailers, military vehicles, and industrial components. California Pulse custom-builds booths around your largest products, material handling methods, and production requirements, ensuring you have the space needed today and as your operation grows.

How do I know what size large equipment spray booth I need?

The right booth size depends on the largest equipment you plan to finish, as well as the forklifts, cranes, carts, or conveyors used to move products through the process. California Pulse works directly with customers to evaluate product dimensions, workflow requirements, and future expansion plans to design a booth that maximizes productivity while avoiding costly space limitations later.

Can a large equipment booth provide high-quality finishes on oversized products?

Absolutely. Consistent finish quality depends on proper airflow, filtration, pressurization, and environmental control. California Pulse offers crossflow, reverse flow, side downdraft, semi-downdraft, and full downdraft configurations that can be tailored to large equipment applications, helping reduce contamination, improve coating consistency, and minimize costly rework.

Are truck and large equipment spray booths difficult to permit?

Permitting requirements can be complex, especially for large industrial finishing operations. California Pulse helps simplify the process by offering engineered booth designs, available full-system ETL-listed configurations, and technical support throughout the project. Our compliance-focused approach helps customers navigate permitting requirements while reducing project risk and approval delays.

Why do manufacturers and fleet operators choose California Pulse for large equipment spray booths?

Large equipment finishing operations require more than a standard paint booth. California Pulse designs custom-engineered finishing systems built around your products, facility, workflow, and production goals. As a U.S.-based manufacturer, we provide direct access to engineering expertise, full-system ETL-listed options, integrated heating and airflow solutions, and long-term technical support. The result is a spray booth designed to improve throughput, maintain finish quality, and support reliable operation for years to come.
