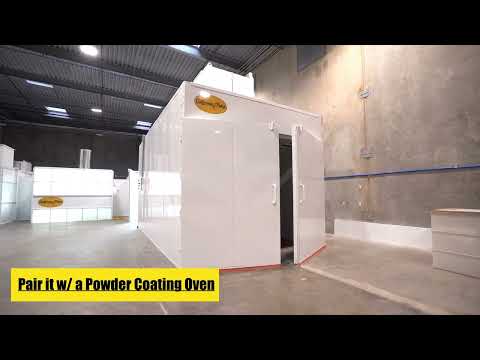

Custom Powder Coating (Process) Ovens and Booths
Ovens can be used for a variety of processes:
-
Powder coating
-
Aerospace composite curing
-
Burn off
-
Drying (curing)
CONSTRUCTION
-
Aluminized and galvanized steel
-
Double walled panels insulated with 4"/6" thick mineral wool
-
Tongue and groove panel design allows for easy installation
-
Doors are equipped with adjustable heavy-duty hinges
-
Barn door style, sliding and other doors are available.
HEATING & AIR FLOW SYSTEMS
-
We offer different sizes of heating systems
-
Oven heaters range from 5,000cfm to 55,000cfm in capacity
-
Heaters can be mounted next to or on top of the oven.
-
Intake plenums are ceiling or wall intake mounted
-
Air flow is regulated through adjustable nozzles
-
Heated air is evenly distributed through the oven
-
High temperature welded, forward curved fans
-
Withstand up to 600F in temperature
-
Fans handle static pressure well operate quietly
-
Heat sensitive parts, motors, bearings, belts, etc. are located in the cool, ambient air.

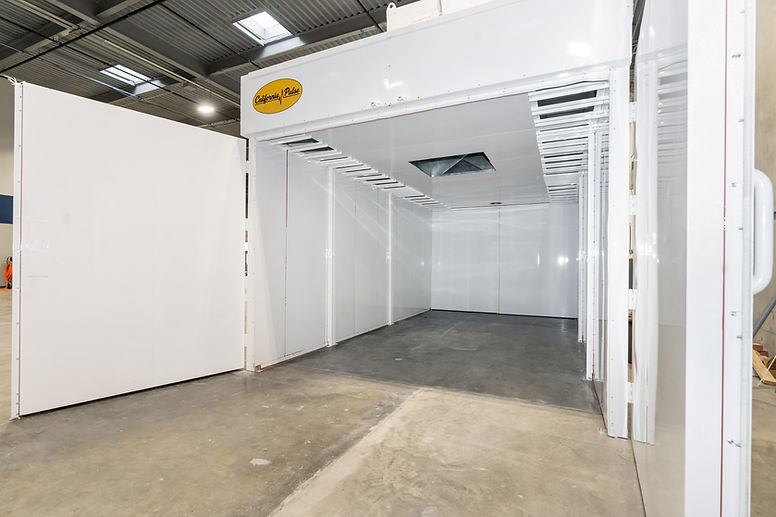

POWDER COATING BOOTHS
COLLECTOR TYPE
-
End or Side Crossflow designs
-
Air is filtered through two stage filters or
-
Through our line of dust collector modules
-
Resulting clean air can then vent to the outside environment or
-
Is recirculated indoors through HEPA filters
-
Booths can be Open Face or Enclosed
-
Side Crossflow
-
Dust collector
-

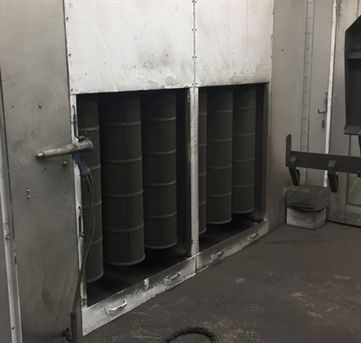

1st Stage cartridge filters
-
2nd Stage polyester filters
-
3rd Stage HEPA filters
ECONOMY TYPE
-
End or Side Crossflow designs
-
Air is filtered through two stage filters or
-
Through a HEPA filter
-
Resulting clean air can then vent to the outside environment or
-
Is recirculated indoors through HEPA filters
-
Booths can be Open Face or Enclosed
-
Side Crossflow
-
1st Stage Blanket Filter
-
2nd Stage Pocket Filters
-
3rd Stage HEPA filters
