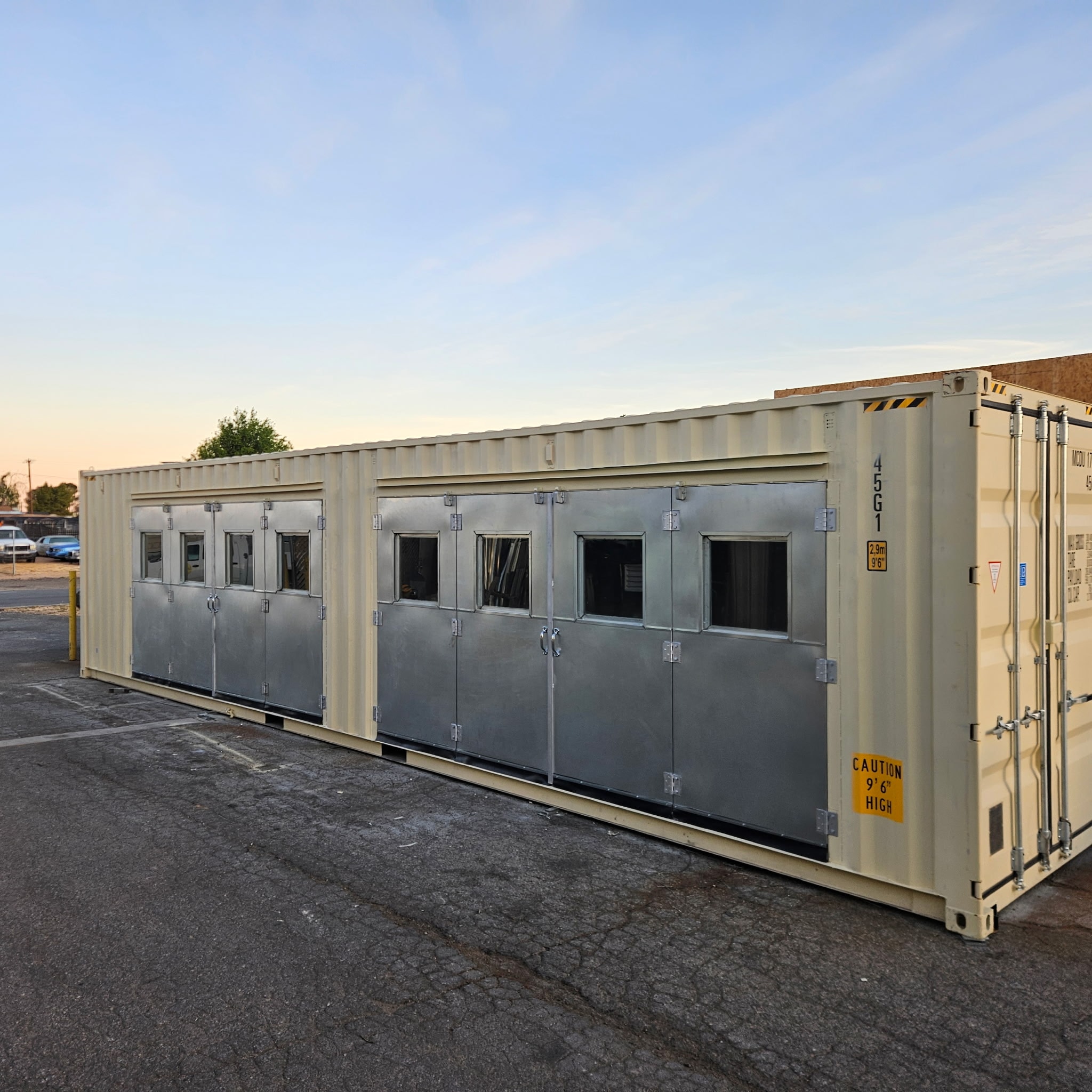

CONTAINER SPRAY BOOTHS
Our container spray booths are compact, portable, and weatherproof. These booths are ideal for smaller parts and can even be converted for spraying, drying, sanding, blasting, powder, mixing, or storage applications.
Standard sizes are 20'L x 8'W x 8'H and 40'L x 8'W x 8'H.
Need something custom? Ask us!
Basic options include:
-
High cube (9'6"H)
-
Double wide (16'W)
-
Product door for side loading
-
Loading ramps
-
NESHAP or HEPA filtration
-
Ceiling-mounted air makeup unit
-
Gas or electric heating
-
Cross flow or semi-down draft air flow
-
Compressor line kit
Additionally, components come pre-installed. A level pad and on-site electrical and gas (if heated) hookups are all that's needed.
Booth Features
-
Container booths are paneled with 18-ga galvanized steel.
-
Amerex fire suppression system comes pre-installed.
-
Duct work with guy wire kit is included (must be installed on-site).
-
LED tube lights are standard, featuring an output of up to 10,000 lumens each. Fixtures are all inside-access and Class 1 Division 2 rated.
-
Air is exhausted out by a belt-driven tubeaxial fan, designed with an aluminum bladed propeller for low noise levels.
-
Intake filtration consists of polyester filters tackified to ensure fine dust particles are captured and only clean air enters the booth. Exhaust filtration consists of fiberglass media for high-efficiency paint removal as air exits the booth.
-
Full installation instructions and 3D modelling in SolidWorks.
-
All booths are fully ETL-listed at no extra charge to ease the permitting process.
