Understanding Static Pressure and Its Role in Spray Booth Performance

Static pressure is one of the most consequential variables in industrial spray booth design, yet it receives far less attention than airflow velocity or filter efficiency during equipment evaluation. Facilities that overlook static pressure during system selection frequently encounter contamination problems, inconsistent finishes, unbalanced airflow, and exhaust fan failures — all of which trace back to a poorly understood pressure relationship within the booth enclosure. Understanding static pressure and its role in booth performance is foundational to selecting, configuring, and maintaining a finishing system that delivers repeatable results.

This post covers how static pressure develops inside a spray booth, how it affects airflow balance and finish quality, what variables cause static pressure to change over time, and how to use this knowledge to make better decisions about booth design, fan selection, and filter maintenance.

What Static Pressure Means in a Spray Booth Context

Static pressure, measured in inches of water column (in. w.c.), is the resistance that air encounters as it moves through a ventilation system. In a spray booth, this resistance builds as air passes through intake filters, plenum chambers, the work zone, exhaust filters, and finally through the exhaust ductwork to the fan.

• Positive static pressure: the booth interior is at a higher pressure than the surrounding atmosphere, causing air to push outward through gaps and seams
• Negative static pressure: the booth interior is at a lower pressure than the surrounding area, drawing ambient air inward through openings
• Balanced static pressure: a controlled condition where exhaust capacity precisely manages interior pressure relative to ambient
• Design static pressure: the total system resistance the fan must overcome to achieve the specified airflow volume, expressed in cubic feet per minute (CFM)
• Pressure differential: the difference between intake and exhaust pressures, which determines the net direction of uncontrolled air movement across the booth envelope

How Static Pressure Affects Airflow Velocity and Pattern

The fan in a spray booth does not deliver a fixed CFM regardless of conditions. Fan performance follows a characteristic curve — as system resistance (static pressure) increases, airflow output decreases. This relationship is central to understanding why a booth that performed correctly at installation may deliver inadequate airflow months later.

• Fan curve intersection: the actual operating point of the fan is where the system resistance curve meets the fan performance curve, and changes in filter loading shift this intersection
• Velocity uniformity: excessive static pressure causes uneven air distribution across the face of the booth, creating high-velocity zones and dead spots within the work area
• Capture velocity: the minimum air velocity at the exhaust plane necessary to capture and carry overspray away from the operator and the work surface, typically 100 FPM in crossdraft configurations and higher in downdraft designs
• Turbulence: pressure imbalances generate turbulent airflow that disturbs wet coatings, introduces particulate contamination, and produces orange peel, fisheye, and other surface defects
• Exhaust fan load: elevated static pressure increases the amperage draw on exhaust fan motors, accelerating wear and increasing energy consumption

The Role of Intake and Exhaust Filters in Pressure Management

Filters are the primary source of static pressure increase during normal booth operation. Both intake and exhaust filters accumulate particulate over time, narrowing the effective cross-sectional area available for airflow and steadily raising system resistance.

• New filter baseline: a clean filter bank establishes the minimum static pressure for the system, and this number should be documented at commissioning as a reference point
• Filter loading rate: the rate at which filters accumulate particulate depends on coating type, production volume, transfer efficiency, and filter media grade
• Pressure drop across filters: each filter stage adds resistance; a filter that begins at 0.08 in. w.c. resistance when clean may reach 0.50 in. w.c. or higher when loaded, dramatically reducing fan output
• Replacement thresholds: most filter manufacturers specify maximum allowable pressure drop values; exceeding these thresholds compromises both airflow performance and fire safety
• Intake filter neglect: neglected intake filters are frequently overlooked as a pressure source, but restricted intake flow can create negative pressure conditions that pull contaminated ambient air into the booth envelope

Fan Selection and Static Pressure Rating

Selecting a fan for a spray booth without accounting for total system static pressure is a common source of performance problems. A fan rated for adequate CFM at zero resistance may deliver substantially less airflow under real operating conditions.

• Total static pressure calculation: system designers must account for resistance across intake filters, exhaust filters, interior ductwork, transitions, and exhaust stack length to determine the total static pressure the fan must overcome
• Fan types: centrifugal fans handle high-static-pressure systems more effectively than axial fans, making them the preferred choice for booths with extended exhaust runs or multiple filter stages
• Motor sizing: undersized motors that encounter higher-than-anticipated static pressure will run at elevated current, trip thermal protection, or fail prematurely
• Variable frequency drives (VFDs): VFDs allow fan speed to be adjusted in response to changing system resistance, maintaining consistent airflow as filters load and extending motor life
• Safety margin: specifying a fan with static pressure capacity 15 to 25 percent above calculated system resistance provides a buffer for filter loading, seasonal air density changes, and future system modifications

Monitoring Static Pressure During Daily Operations

Continuous awareness of static pressure conditions allows facilities to identify performance degradation before it affects finish quality or creates compliance risk.

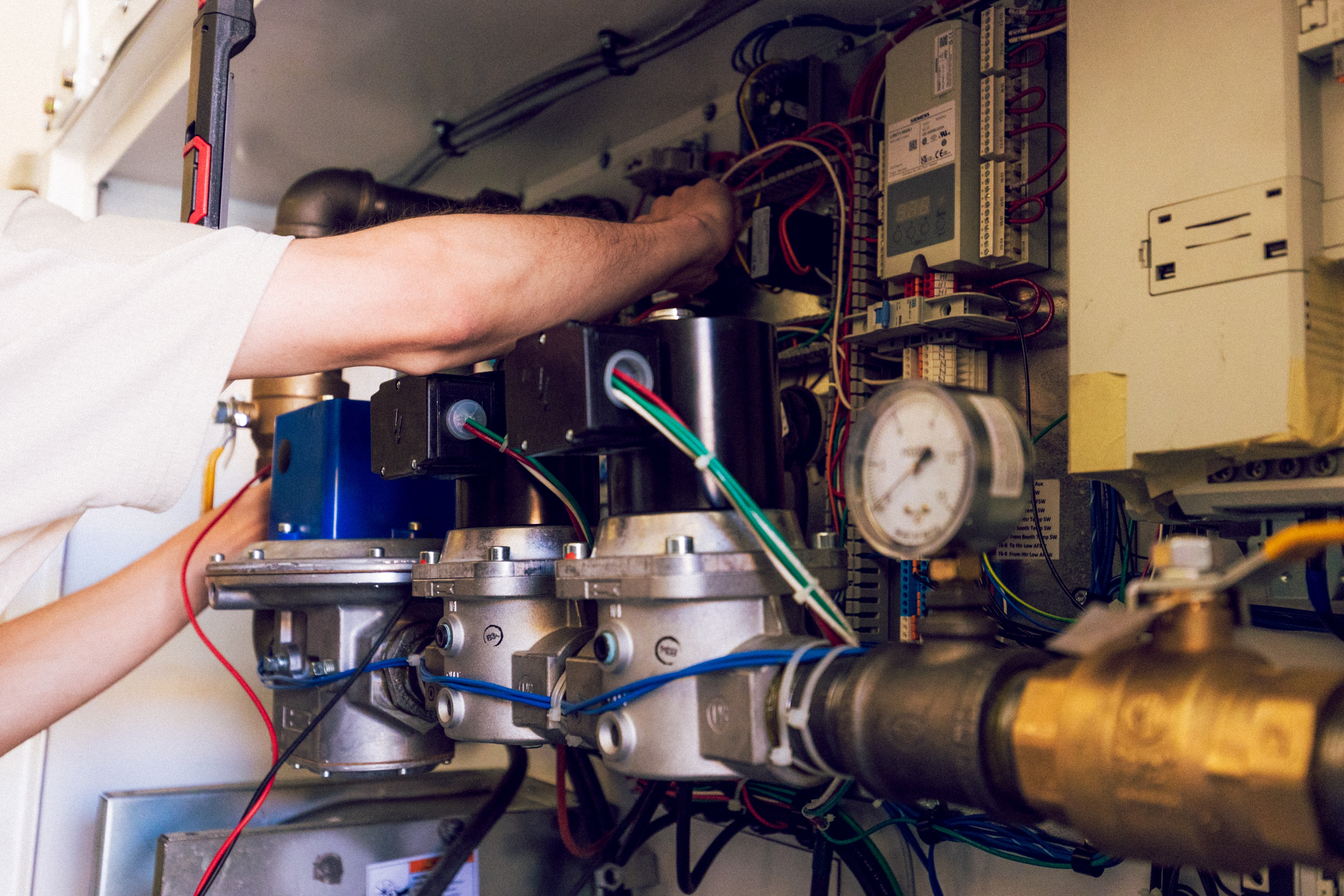

• Magnehelic gauges: differential pressure gauges installed across filter banks provide real-time visual indication of pressure drop and filter loading status
• Alarm setpoints: many booth control systems can be configured to trigger alarms when static pressure exceeds defined thresholds, prompting filter inspection or replacement
• Production logs: correlating static pressure readings with finish quality defect rates helps isolate pressure-related contamination events from other process variables
• Seasonal variation: air density changes with temperature and humidity, affecting fan performance and system static pressure; readings should be interpreted relative to ambient conditions
• Maintenance scheduling: trending static pressure data over time allows maintenance teams to predict filter replacement intervals and schedule downtime proactively rather than reactively

Summary

Static pressure is not a fixed property of a spray booth — it is a dynamic variable that changes with filter condition, production intensity, and environmental factors. Facilities that monitor static pressure consistently, select fans with appropriate static pressure ratings, and maintain filter banks according to pressure-drop criteria will sustain the airflow conditions necessary for repeatable finish quality. Ignoring static pressure is among the most direct paths to chronic finishing defects and avoidable equipment failures.
