Automotive Spray Booth Airflow Types: Optimizing Air Movement for Superior Finishes
- Andrew Salas
- Oct 17
- 3 min read
Updated: Oct 25
Airflow design is one of the most critical factors in achieving a high-quality paint finish within an automotive spray booth. The direction and pattern of air movement determine how effectively overspray is captured, how clean the environment remains, and how consistently coatings are applied. California Pulse designs and manufactures spray booths engineered for optimal airflow performance—ensuring cleaner finishes, faster drying times, and improved energy efficiency.
Our experts work with leading automotive refinishing operations to develop custom booth configurations based on production volume, facility layout, and finish quality requirements. Below, we explore the four most common airflow types used in automotive spray booths: Crossflow, Semi-Downdraft, Side Downdraft, and Downdraft—each with unique advantages and considerations.

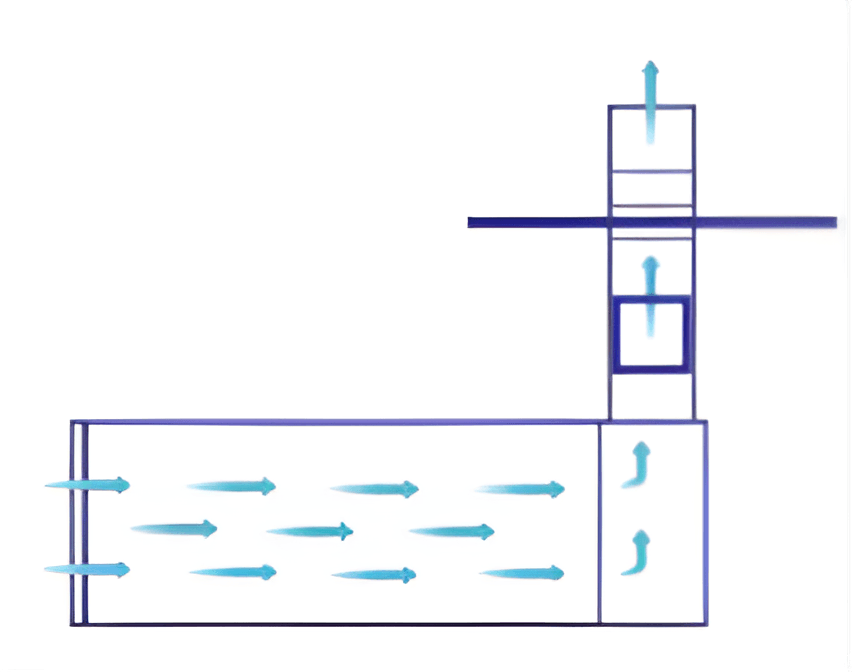

Crossflow Spray Booths
Description: In a crossflow booth, air enters through filters in the front of the booth and moves horizontally across the workspace toward exhaust filters located at the rear. This design provides straightforward airflow and is often used in smaller or retrofit installations.
Pros:
Simple and cost-effective to install and operate.
Requires less structural modification to existing buildings.
Effective for low- to medium-volume operations.
Cons:
Airflow can carry overspray across the vehicle surface, increasing the risk of contamination.
Uneven airflow patterns may affect finish consistency.
Floor dust can be more easily stirred into the air stream.
Semi-Downdraft Spray Booths
Description: Semi-downdraft booths combine features of both crossflow and downdraft systems. Air enters through the ceiling at the front of the booth and exits through exhaust filters located along the rear wall. This creates a diagonal airflow pattern from upper front to lower rear.
Pros:
Improved overspray control compared to crossflow designs.
Easier installation and lower cost than full downdraft booths.
Provides better coverage and air cleanliness around the vehicle’s top and sides.
Cons:
Airflow is not uniform across the entire workspace.
Rear areas of the booth may receive less consistent air movement.
Slightly higher risk of overspray settling on horizontal surfaces.

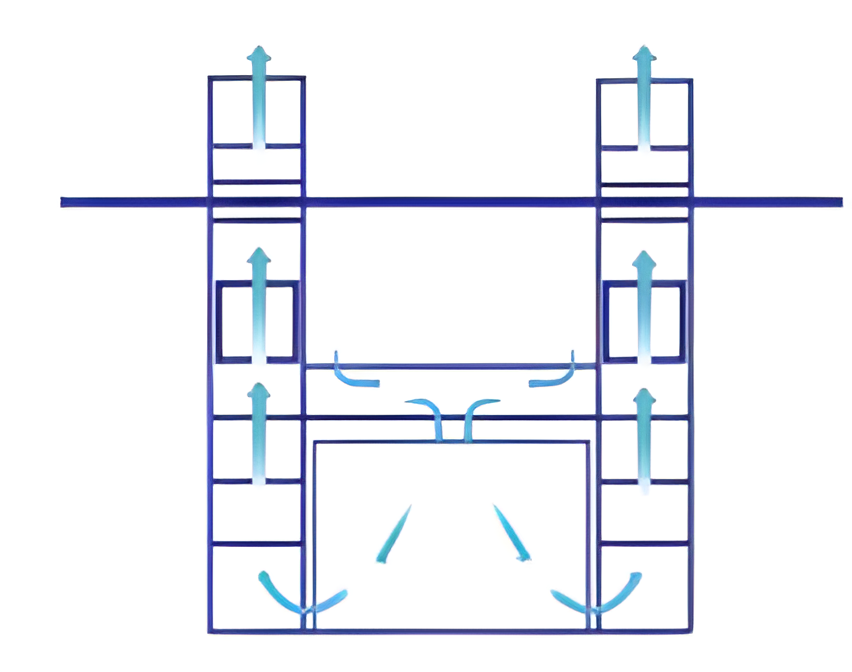

Side Downdraft Spray Booths
Description: In side downdraft configurations, filtered air enters uniformly from the ceiling and exits through exhaust filters along both sidewalls. This creates a clean, vertical-to-horizontal airflow path that evenly removes overspray from all directions without disturbing the paint surface.
Pros:
Excellent contamination control and even airflow distribution.
Minimal overspray on finished surfaces.
Does not require a pit or floor plenum, reducing construction complexity.
Cons:
Higher equipment and installation costs compared to crossflow or semi-downdraft booths.
Sidewall filters require more frequent maintenance or replacement.
Slightly reduced floor space due to exhaust filter placement.
Downdraft Spray Booths
Description: Downdraft spray booths deliver air from ceiling filters directly downward over the vehicle and exhaust it through a pit or raised floor. This top-to-bottom airflow provides the cleanest and most controlled painting environment, ideal for high-end or production-level automotive finishing.
Pros:
Provides the cleanest air environment and highest-quality finish.
Removes overspray efficiently, minimizing contamination.
Uniform airflow ensures consistent paint application on all surfaces.
Cons:
Most expensive type of booth to install and maintain.
Requires a pit or raised floor for exhaust, adding to construction complexity.
Higher energy demands due to greater airflow volumes.
Why Airflow Design Matters
Selecting the right airflow pattern directly impacts coating quality, operational efficiency, and compliance with environmental standards. California Pulse engineers each spray booth to meet NFPA 33, OSHA, and local air quality regulations while optimizing performance for your specific workflow and coating materials.
Whether you’re outfitting a small auto body shop or a high-volume production line, California Pulse can deliver the precision, consistency, and cleanliness you need for superior finishes every time.
