Surface preparation is the foundation of any high-quality powder coating or liquid paint process. Before a part ever reaches the spray booth, it must be cleaned, decontaminated, and conditioned to ensure proper adhesion, corrosion resistance, and long-term durability. Without proper surface prep, even the best coatings will fail—resulting in peeling, rusting, or inconsistent finish quality.
California Pulse engineers preparation environments and equipment that help manufacturers achieve consistent, production-ready results. From basic washing to complex blasting and multi-stage pretreatment, a properly designed system ensures repeatability, efficiency, and reliable coating performance.
Understanding Surface Preparation Levels
Surface preparation requirements vary widely depending on the part’s condition, material, and coating performance expectations. Manufacturers generally fall into three categories:
1. Simple Preparation
Used when parts arrive clean, primed, or lightly processed. Only minimal prep is required to remove dust, oil, or transit grime.
Typical methods include:
Manual blow-off
Wipe-down
Basic power washing
Ideal for products with low performance requirements or pretreated surfaces.
2. Advanced Preparation
Common for low-volume or batch operations requiring moderate adhesion and corrosion resistance.
Typical methods include:
Chemical wiping
Sanding, grinding, or wire brushing
Light abrasive blasting
Spray-on cleaners or basic conversion coatings
This level ensures stronger adhesion without requiring full automation.
3. Complex Preparation
Required for high-volume production or coatings with strict performance specifications.
Processes often include:
Automated abrasive blasting
Multi-stage pretreatment washers
Phosphate or zirconium conversion coatings
This approach provides the most consistent and durable results, especially in demanding environments.
Cleaning & Chemical Pretreatment Methods
Metal parts often contain oils, grease, dirt, or polishing compounds that prevent coating adhesion. Proper cleaning is the first step in achieving a reliable finish.
Washing Processes
Cleaning may be performed manually or automatically using:
Alkaline cleaners
Acidic cleaners
Solvents
Hot water or steam
Detergents help remove oils or waxes that can interfere with coating performance.
Automated Pretreatment Washers
For higher throughput and repeatability, manufacturers use conveyorized spray washers ranging from 3–8 stages.
A common 5-stage system includes:
Chemical Cleaning
Rinse
Iron Phosphate
Rinse
Final Seal
Common Chemical Systems
Iron Phosphate: General-purpose adhesion and corrosion protection
Zinc Phosphate: Higher corrosion resistance and salt-spray durability
Zirconium: Phosphate-free, energy-efficient, no heat required
Advantages of Automated Washers
More thorough cleaning from multi-angle spray nozzles
Lower water usage
Reduced labor and improved consistency
No dependency on production ovens for drying
High repeatability for demanding finishing standards
Pretreatment washers provide the precision required for modern industrial coatings.
Abrasive Blasting Methods
When parts contain rust, mill scale, old coatings, or heavy buildup, abrasive blasting creates the profile required for coatings to bond properly.
Types of Media
Common abrasives include:
Steel grit or shot
Crushed glass
Aluminum oxide
Ceramic or glass bead
Silicon carbide
Plastic media
Copper slag
Media selection depends on substrate hardness and finish requirements.
Wet Blasting
Uses water to carry abrasive media, reducing dust, frictional heat, and potential surface damage.
Shotblasting
Uses a centrifugal wheel and round shot. This is more aggressive and ideal for large-scale industrial cleaning.
SSPC Blasting Standards
Brush-Off Cleaning: Light surface cleaning
Commercial Blast: Two-thirds clean
Near-White Metal Blast: 95% clean
White Metal Blast: 100% removal of all contaminants
Blasting Environments
Blast Booths: Full-room enclosures for large parts
Blast Cabinets: For small parts or precision blasting
Portable Blast Pots: Flexible for various production environments
These environments ensure operator safety and media containment.
Sanding & Grinding Methods
Sanding and grinding are less aggressive than blasting but still critical for removing oxides, burrs, coatings, and imperfections.
Purpose of Sanding & Grinding
Remove surface debris or rust
Smooth uneven surfaces
Create texture for coating adhesion
Prepare edges, welds, or rough areas
Wet grinding can also reduce heat and improve finish uniformity.

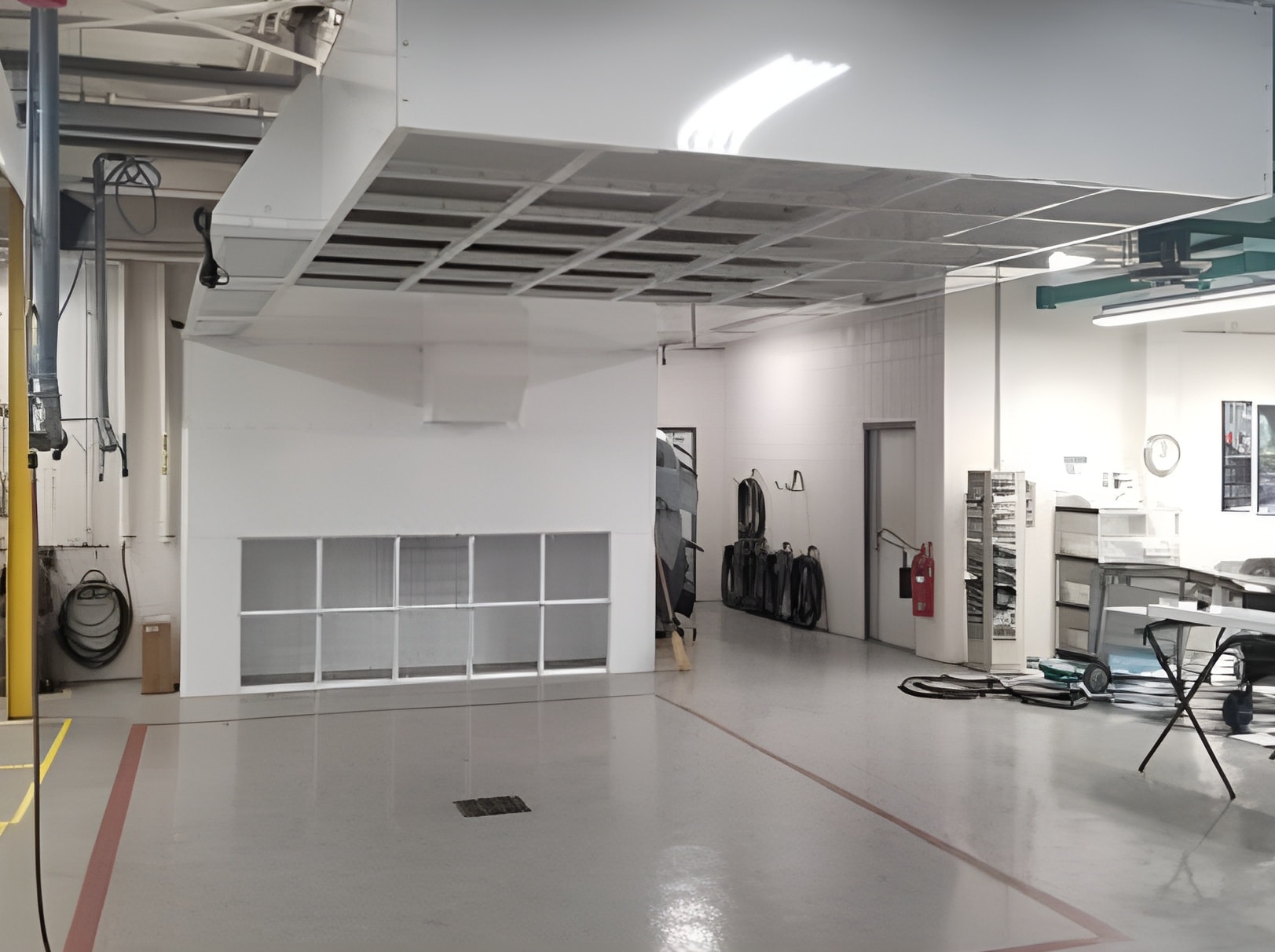

Dust Control Environments
Dust collection booths create a safe, clean space for manual surface prep. These systems:
Capture airborne dust
Filter the air through high-efficiency cartridges
Improve operator visibility
Prevent contamination of other shop areas
A controlled environment ensures cleaner finishes and healthier working conditions.
Why Proper Surface Preparation Matters
Surface preparation directly impacts finish quality and long-term product performance. Proper prep:
Ensures strong coating adhesion
Reduces the risk of corrosion and coating failure
Improves weathering and durability
Decreases rework and waste
Enhances consistency across production
Even the best coating system cannot compensate for inadequate surface prep. Clean, conditioned metal is the starting point for every successful finish.
Why Choose California Pulse for Surface Preparation Systems
California Pulse delivers engineered preparation environments that support consistent, high-performance coating results.
What We Provide
Pretreatment Systems tailored to your throughput and chemistry
Abrasive Blast Booths designed for safety, visibility, and production speed
Dust Collection Booths engineered to manage sanding and grinding operations
Integrated Finishing Systems that connect preparation, coating, and curing
Our Advantages
Precision engineering for consistent performance
Reliable construction for industrial environments
Scalable designs for both batch and automated production
Seamless integration into larger finishing systems
Optimal coating performance begins with proper surface preparation—and we design systems that help you achieve it.
